High Power Polarization Maintaining EDFA


Amonics' high power polarization maintaining EDFA can amplify polarized signal to very high power level.Our high power polarization maintaining EDFA can amplify optical signal up to 10 Watt optical power. The applications of our high power polarization maintaining EDFAs include fiber optic sensing, free space optical sensing, and experiments in nonlinear fiber optic.

Benchtop High Power PM EDFA Specifications

AEDFA-PM-30-B AEDFA-PM-33-B AEDFA-PM-36-B

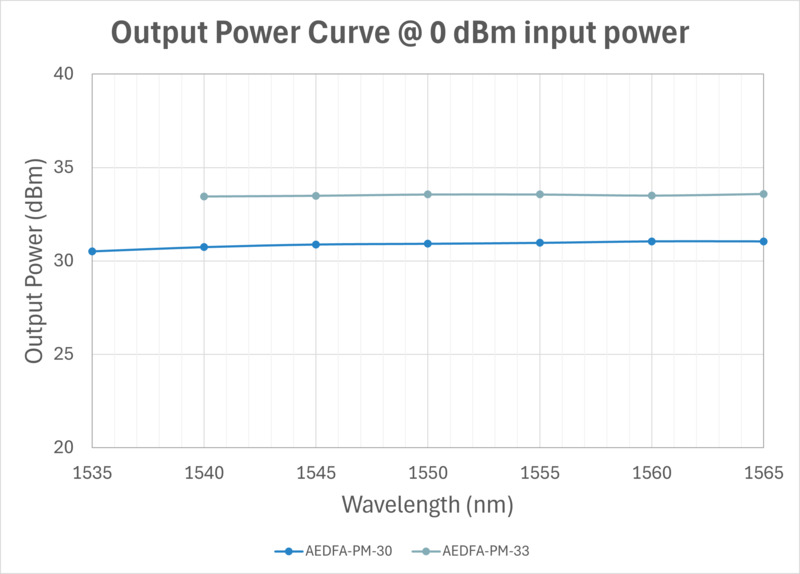

Saturation Output Power (at 0dBm input signal) Min. +30dBm Min. +33dBm Min. +36dBm
Input Signal Level -6 to +3dBm -6 to +3dBm -6 to +3dBm
Operation Wavelength 1535nm to 1565nm 1540nm to 1565nm 1540nm to 1565nm

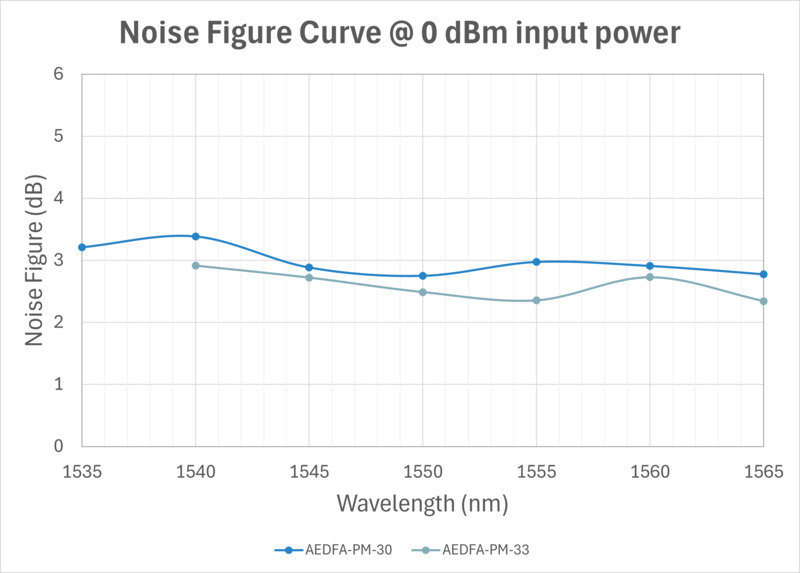

Noise Figure (at 0dBm input signal) < 6.0dB < 6.5dB < 6.5dB
Input Isolation Min. 30dB Min. 30dB Min. 30dB
Output Isolation Min. 30dB Min. 30dB Min. 25dB
Polarization Extinction Ratio Typ. 23dB, Min. 20dB Typ. 23dB, Min. 20dB Typ. 23dB, Min. 20dB
Control Mode ACC, APC (Option) ACC, APC (Option) ACC, APC (Option)
L-Band or other output power models are available upon request.

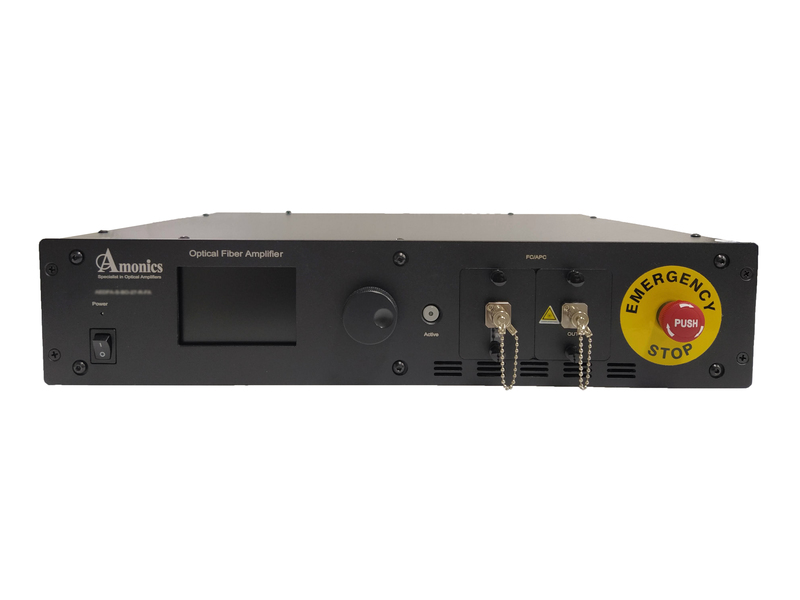

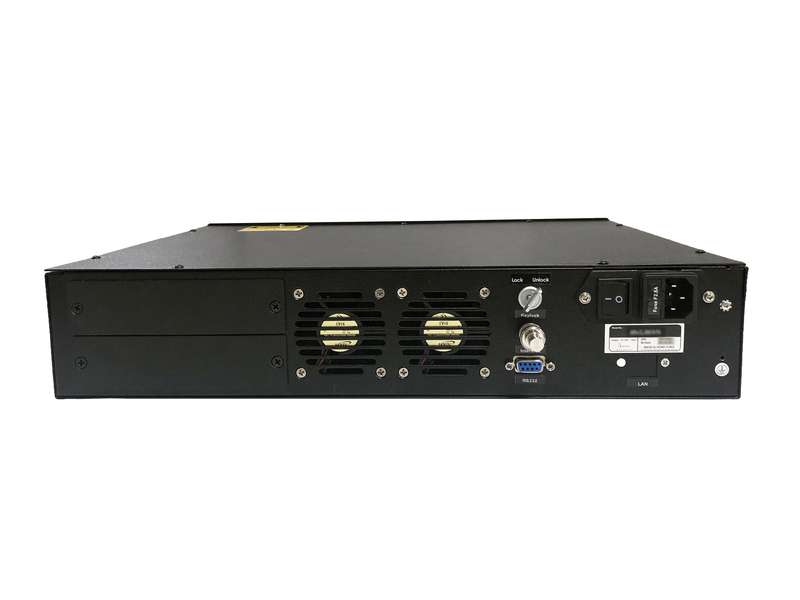

Rackmount High Power PM EDFA Specifications

AEDFA-PM-37-R AEDFA-PM-40-R
Saturation Output Power (at 3dBm input signal) Min. +37dBm Min. +40dBm
Input Signal Level -3 to +10dBm 0 to +13dBm
Operation Wavelength 1545nm to 1565nm 1550nm to 1565nm
Noise Figure (at 3dBm input signal) Max. 7.0dB Max. 7.5dB
Input Isolation Min. 30dB Min. 30dB
Output Isolation Min. 25dB Min. 25dB
Polarization Extinction Ratio Typ. 23dB, Min. 20dB Typ. 23dB, Min. 20dB
Control Mode ACC, APC (Option) ACC, APC (Option)
L-Band or other output power models are available upon request.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H) for AEDFA-PM-30, AEDFA-PM-33, AEDFA-PM-36
2U Rackmount Dimensions mm 485(W) x 515(D) x 90(H) or 485(W) x 515(D) x 90(H) for AEDFA-PM-37
3U Rackmount Dimensions mm 485(W) x 615(D) x 150(H) for AEDFA-PM-40
Control Keylock switch, optical output power
LCD Display Output power, Pump laser current
Computer Interface RS232 (Labview control software & connection cable included) / Ethernet (Option)
Protection Pump laser over heat warning
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC, bare fiber (No output connectors for output power >2W)
Optical Fiber PM 1550 Panda Fiber

Options

Input Power Monitoring

Ordering Information

Product Code
AEDFA-PM-bb-c-dd
bb: Saturated Output Power in dBm
c: B for Benchtop case, R for 19 inches Rackmount case
dd: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, NC for Bare fiber


Key Features

High polarization extinction ratio
Turnkey device
High output power
High gain
Low noise figure
Long operating life time
