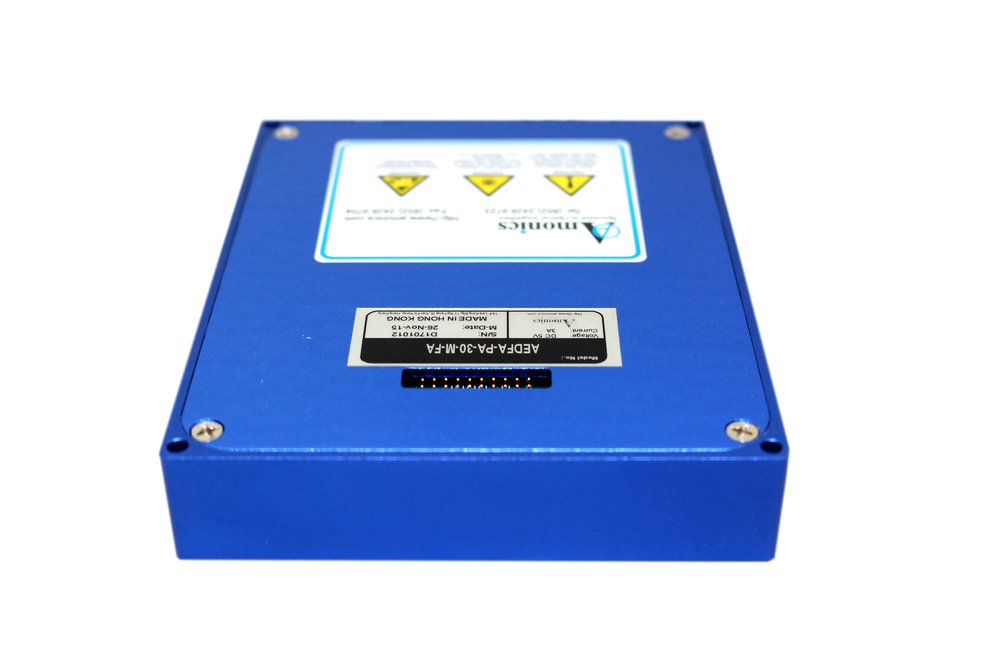

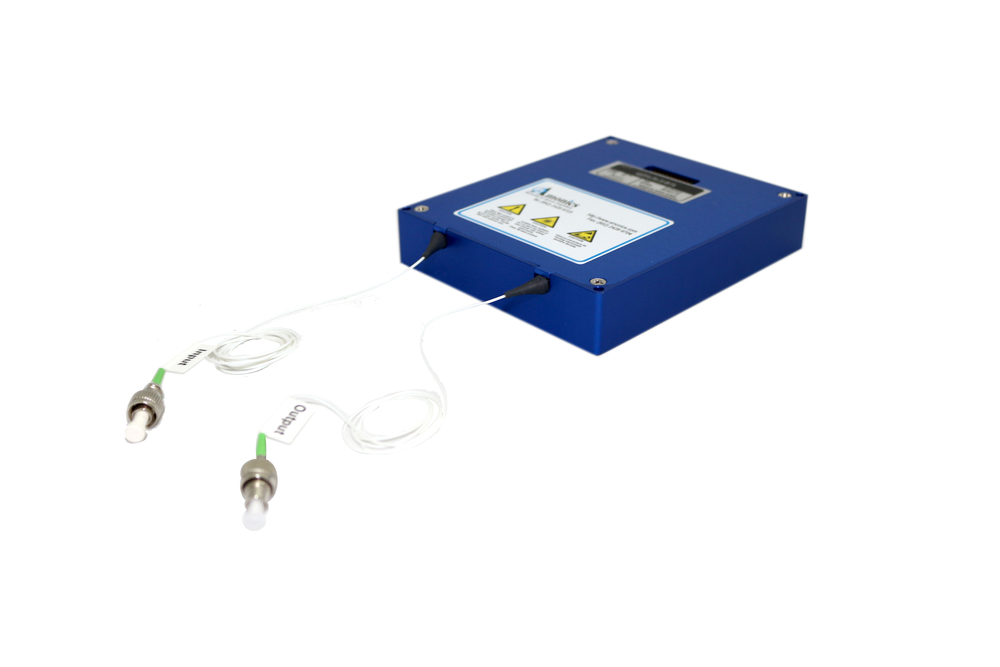

EDFA Module
Amonics EDFA module, operated on a single +5V power supply, is an ideal building block for OEM system integration as it comes with the essential EDFA functions to serve various purposes and the interfaces ready for system integration.
Photodetection of output and/or input signal is included. Three different control modes, ACC, APC and AGC, are available to meet different requirements.
Specifications
| AEDFA-13 | AEDFA-18 | AEDFA-23 | |
|---|---|---|---|
| Saturation Output Power (at -3dBm input signal) | Min. +13 dBm | Min. +18 dBm | Min. +23 dBm |

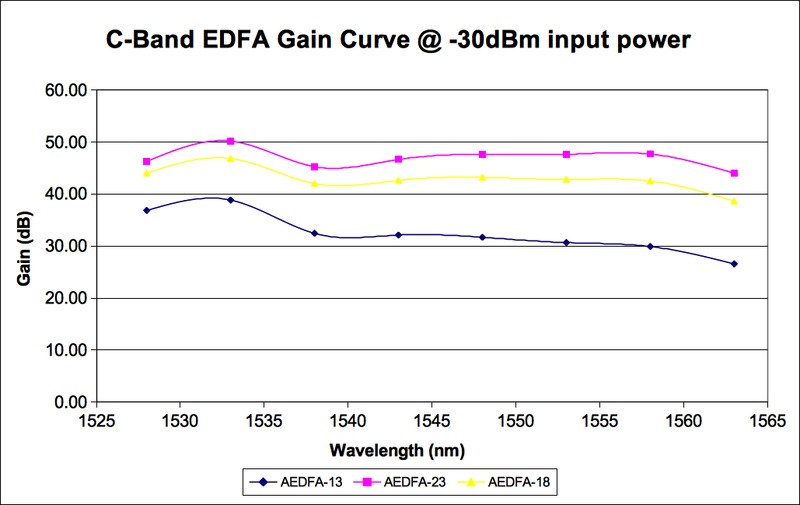

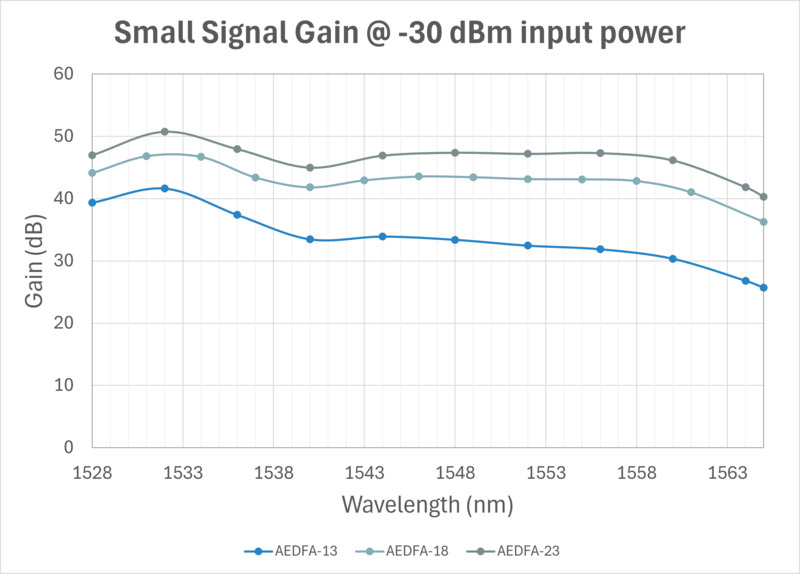

| Small-Signal Gain at 1550nm (at -30dBm input signal) | Min. 30 dB | Min. 32 dB | Min. 37 dB |

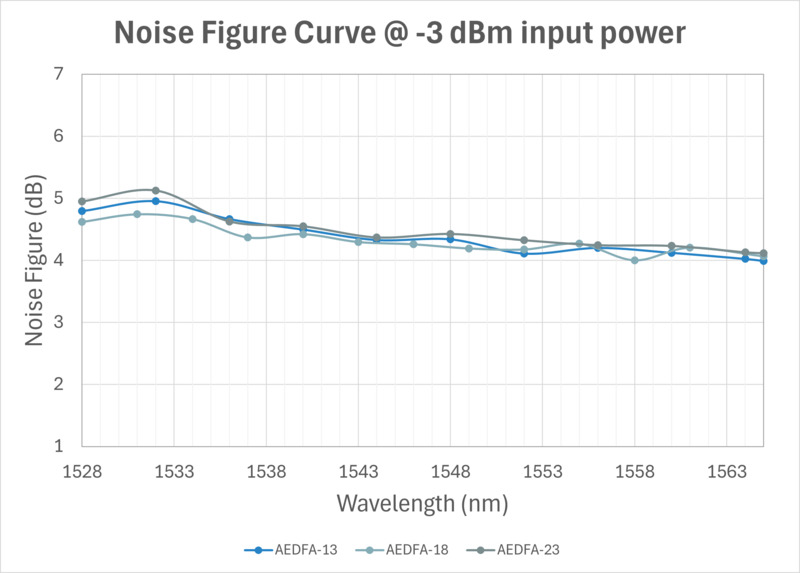

| Noise Figure (at -3dBm input signal) | Typ. 5.0 dB, Max. 5.5 dB | Typ. 5.0 dB, Max. 5.5 dB | Typ. 5.5 dB, Max. 6.0 dB |
| Operating Wavelength | 1528 nm to 1563 nm | 1528 nm to 1563 nm | 1528 nm to 1563 nm |
| Input Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | ACC, APC, AGC (optional) | ACC, APC, AGC (optional) | ACC, APC, AGC (optional) |
Other output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to 40 |
| Storage Temperature | °C | -10 to 70 |
| Power Supply | VDC | 5.0 ± 0.1 |
| AEDFA-13/ AEDFA-18 Dimensions | mm | 100(W) x 120(D) x 22(H) |
| AEDFA -23 Dimensions | mm | 120(W) x 200(D) x 25(H) |
| Optical Power Monitoring | Output power, Input power (optional) | |
| Electrical Connector Interface | 14-pin MIL Socket for AEDFA-13, AEDFA-18 ; DB25 Connector for AEDFA-23 | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | Min. 0.5m long SMF-28 |
Options
| Gain flattening filtering |
Ordering Information
| Product Code |
|---|
| AEDFA-aa-M-bb |
| aa: Saturation output power in dBm |
| bb: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| Small foot print |
| High output power |
| High gain |
| Wide operation range |
| Single +5V power supply |
| Highly reliable and durable |
