Pico-second Pulse EDFA
Amonics' Pulse EDFA is designed for amplifying optical short pulse to high pulse energy level. Amonics' engineers have a lot of knowledge in designing pulse optical amplifier, especially handling the nonlinearity in optical fiber due to high pulse peak power of the optical short pulse. We can design custom pulsed EDFA for different applications, such as fiber optic sensing and free space optical sensing. Our pulse EDFA has been widely used in industrial fiber laser based Lidar systems for wind velocity detection.

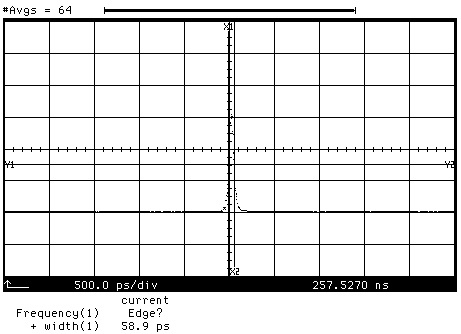

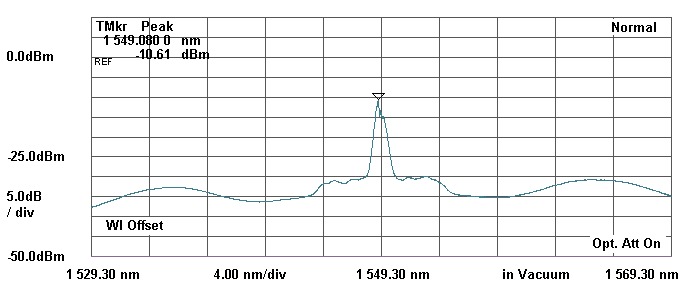

Specifications
| AEDFA-PS | AEDFA-PM-PS | |
|---|---|---|
| Operating wavelength | 1540 nm to 1560 nm | 1540 nm to 1560 nm |
| Saturated Output Power up to (at 10mW peak input power) | 40 dBm (50 ps pulse width, 100 MHz rep rate), Min. 25 dBm (50 ps pulse width, 10 MHz rep rate) | 40 dBm (50 ps pulse width, 100 MHz rep rate), Min. 25 dBm (50 ps pulse width, 10 MHz rep rate) |
| Input Signal Peak Level | +10 dBm | +10 dBm |
| Pulse Repetition Rate | 1 MHz to 100 GHz | 1 MHz to 100 GHz |
| Noise figure | Max. 7.5 dB | Max. 7.5 dB |
| Input / Output isolation | Min. 30 dB | Min. 30 dB |
| Polarization dependent gain | Typ. 0.3, Max. 0.5 dB | NA |
| Polarization mode dispersion | Typ. 0.3, Max. 0.5 ps | NA |
| Polarization Extinction Ratio | NA | Typ. 23 dB, Min. 20 dB |
| Optical Fiber | SMF-28 | PM 1550 Panda Fiber |
Different output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| Benchtop Dimensions | mm | 260(W) x 330(D) x 120(H) |
| Control | Keylock switch, Pump laser current | |
| LCD Display | Output power, Pump laser current, Input power (Optional) | |
| Computer Interface | RS232 (Control software & connection cable included) / Ethernet (Option) | |
| Protection | Pump laser over heat warning | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC, collimator, bare fiber (No output connectors for output power >2W) |
Options
| Pulse picker for low repetition rate down to 100kHz |
Ordering Information
| Product Code |
|---|
| AEDFA(-PM)-PS-aaa-bb-cc-B-dd |
| aaa : Pulse Width in ps |
| bb: Repetition Rate in MHz |
| cc: Average Output Power in dBm |
| dd: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, CL for collimator, NC for bare fiber |
Applications
Key Features
| High output power |
| High gain |
| Wide operation range |
| Highly reliable and durable |
