C+L Band EDFA
Amonics offers C+L band EDFAs which are commonly used in a wide range of applications including free space communications, coherent beam combining and detection systems. The compact turnkey benchtop or 19” rackmount unit incorporates a user-friendly front panel housing with a LCD monitor display, key switch, power adjust control knob and optical connectors. Computer interface through RS232 or Ethernet is possible.
Specifications
| AEDFA-CL-17 | AEDFA-CL-20 | AEDFA-CL-23 | |
|---|---|---|---|
| Saturation Output Power (at 0dBm input signal) | Min. +17 dBm | Min. +20 dBm | Min. +23 dBm |
| Input Signal Level | -6 to +3 dBm | -6 to +3 dBm | -6 to +3 dBm |

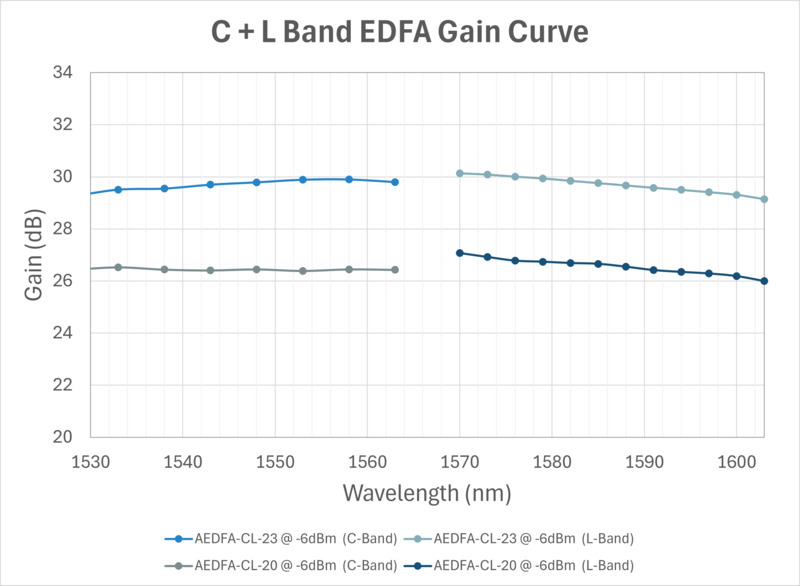

| Small Signal Gain @ -6dBm Input Signal | Min. 23 dB | Min. 26 dB | Min. 29 dB |
| Operation Wavelength | 1528 nm to 1563 nm; 1570 nm to 1603 nm | 1528 nm to 1563 nm; 1570 nm to 1603 nm | 1528 nm to 1563 nm; 1570 nm to 1603 nm |

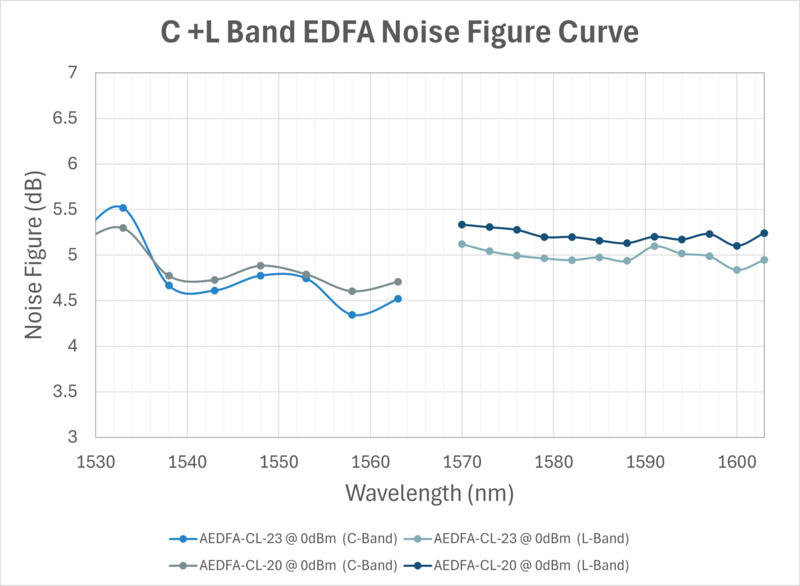

| Noise Figure (at 0dBm input signal) | Typ. 5.5 dB, Max. 6.5 dB | Typ. 5.5 dB, Max. 6.5 dB | Typ. 5.5 dB, Max. 6.5 dB |
| Input / Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Control Mode | ACC, APC | ACC, APC | ACC, APC |
Other output power models are available upon request
General Parameters
| unit | value | remarks | |
|---|---|---|---|
| Operation Temperature | °C | 0 to +40 | |
| Storage Temperature | °C | -10 to +70 | |
| Power Supply | VAC | 90 – 240, 47 – 63Hz | |
| Benchtop Dimensions | mm | 260(W) x 330(D) x 120(H) | |
| 1U Rackmount Dimensions | mm | 485(W) x 360(D) x 45(H) | Other standard rackmount sizes are also available |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | ||
| Optical Power Monitoring | Output power, Input power (optional) | ||
| Remote Control Port | DB-9 female (RS232), Control software included, RJ-45 (TCP/IP Ethernet) (optional) | ||
| Protection | Pump laser (TEC) overheat | ||
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | ||
| Optical Fiber | SMF-28 |
Options
| Gain flattening filtering |
Ordering Information
| Product Code |
|---|
| AEDFA-CL-aa-b-cc |
| aa: Saturated output power in dBm |
| b: B for Benchtop, R for 19 inch Rackmount |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| Turnkey device |
| RS232 / Ethernet computer interface |
| High output power |
| High gain |
| Low noise figure |
| Highly reliable and durable |
