FTTH Erbium Doped Amplifier (EDFA)

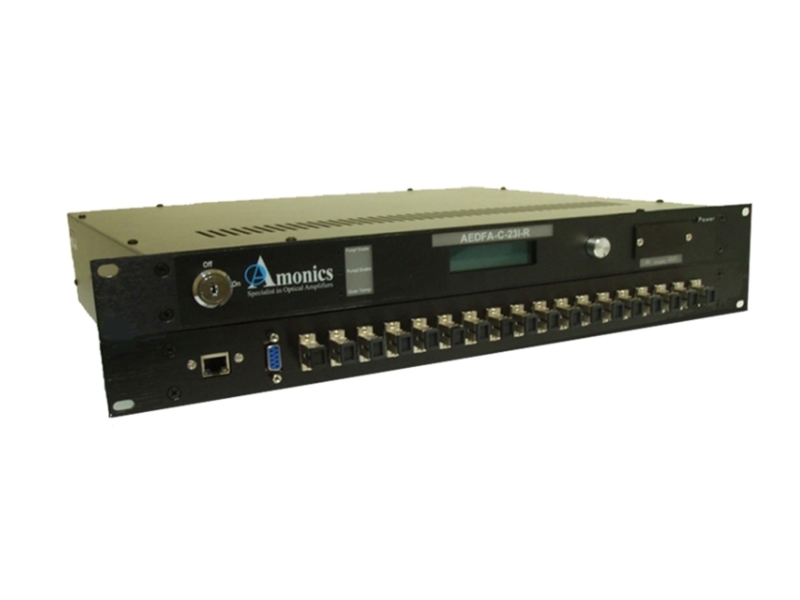

Amonics FTTH EDFAs inherit the reliable design of Amonics’s optical amplifier technology. They exhibit high output power, high gain with very low noise, and are ideal for FTTH network amplification.

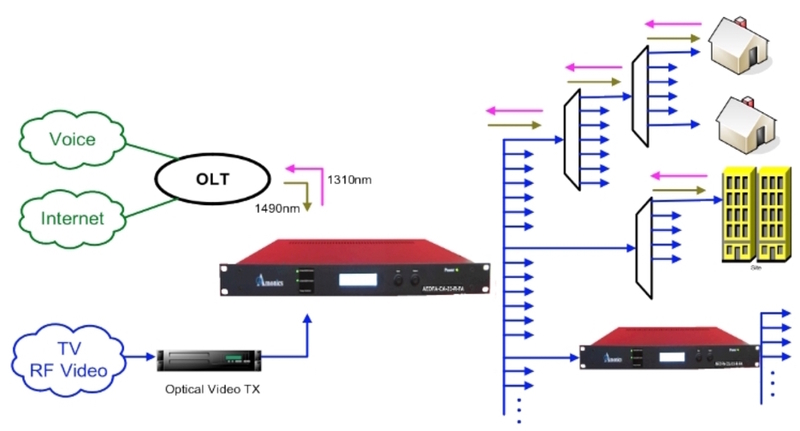

Integrated CWDM splitters are available to enable routing of 1310nm and 1490nm data streams from OLT to ONU through EDFAs. The turnkey rackmount EDFAs provide microprocessor controlled alarms and status indicators. An integrated Ethernet TCP-IP computer interface enables easy control, diagnostic functions and data acquisition.
Specifications
| AEDFA-FTTH | |
|---|---|
| Saturation Output Power (at 0dBm input signal) | From +23 to +40dBm |
| Number of Output Ports | 1, 2, 4, 8, 16, 32 |
| Port-to-Port Variation | Typ. 0.5 dB, Max. 1.0 dB |
| Noise Figure (at 0dBm input signal) | typ. 5.0dB |
| Operating Wavelength | 1540 nm to 1560 nm |
| Carrier to Noise Degradation | Typ. 1.0 dB |
| Input / Output Isolation | Min. 30 dB |
| Power Consumption | Max. 70 W |
| Control Mode | ACC (standard), APC & AGC (optional) |
Other output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VAC | 90 - 240, 47 - 63Hz |
| Dimensions | mm | 485(W) x 360(D) x 45(H) |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Input power | |
| Remote Control Port | RJ-45 (TCP/IP Ethernet) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 |
Ordering Information
| Product Code |
|---|
| AEDFA-FTTH-aa-bb-R-cc |
| aa: Saturation output power in dBm |
| bb: number of output ports |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| High output power, up to 10W |
| Compact size |
| Low noise figure |
| High gain |
| Integrated with CWDM |
| Ethernet TCP-IP remote communication |
| Long operating life time |
