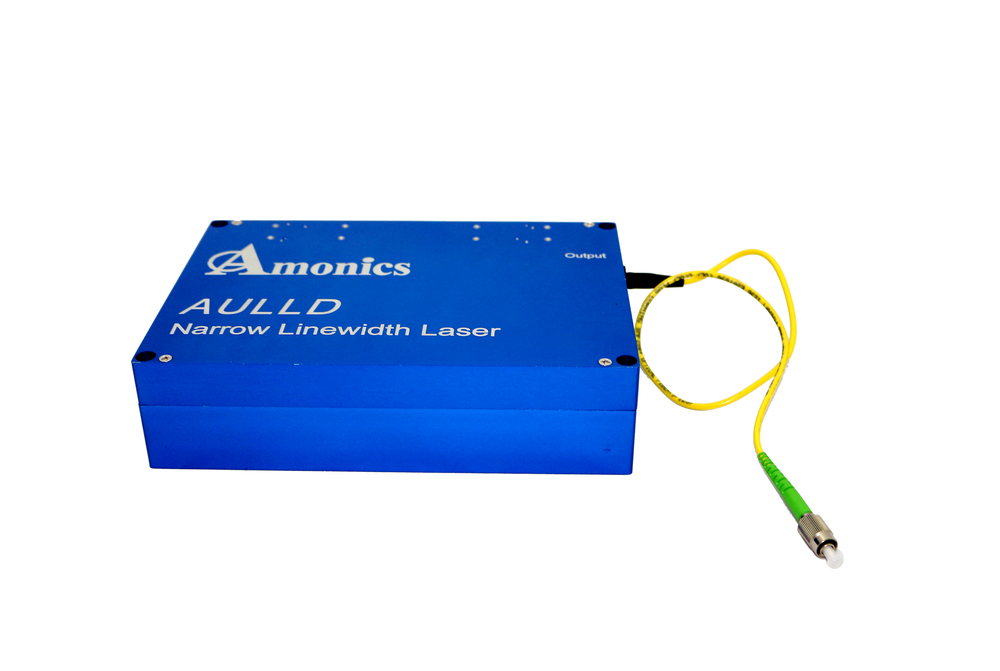

High Power Narrow Linewidth Laser
Amonics' high power narrow linewidth laser (AULLD series) integrates high power fiber amplifier with narrow linewdith laser. It features narrow linewidth, low phase noise, ultra low RIN, high output power with exceptionally reliable performance.
The turnkey microprocessor controlled benchtop AULLD provides alarms and status indicators. An integrated RS232 or Ethernet computer interface provides easy control, diagnostic functions and data acquisition.
It is particularly suitable for commercial fiber optic sensing applications, such as interferometric and Brillouin DTSS sensing systems for oil & gas, security, metrology and smart infrastructure.
Specifications
| AULLD Series | AULLD High Power Series | Remarks | |
|---|---|---|---|
| Laser Wavelength | ITU DWDM or custom, +/- 0.04 nm | ITU DWDM or custom, +/- 0.04 nm | CW @ rated power |
| Optical Output Power | 13 dBm, 23 dBm, 27 dBm, 30 dBm, 33 dBm | 37 dBm, 40 dBm, 43 dBm, 44 dBm | Other power level on request |

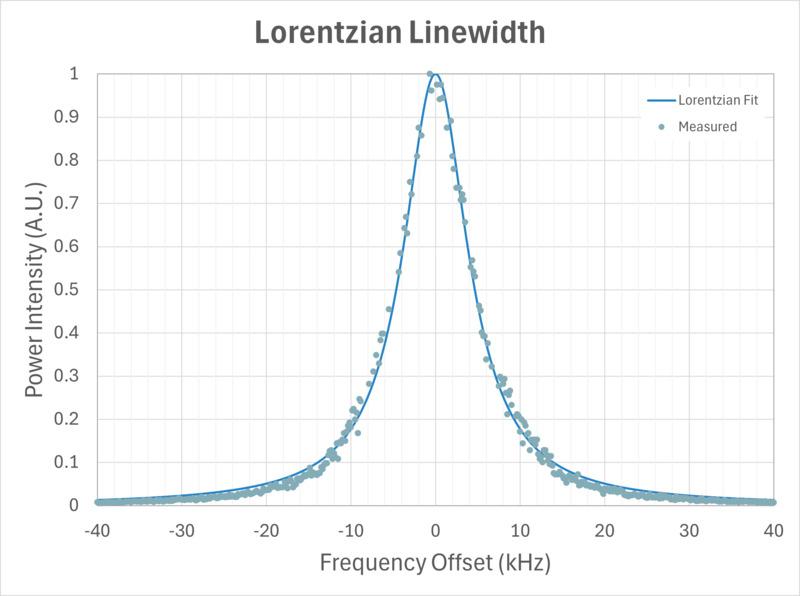

| Maximum Linewidth FWHM, Lorentzian | 2 kHz, 5 kHz, 10 kHz, 15 kHz, up to 200 kHz | 2 kHz, 5 kHz, 10 kHz, 15 kHz, up to 200 kHz | CW @rated power |
| Polarization | Linear or random | Linear or random | |
| Optical Isolation | Min. 30 dB | Min. 20 dB | under operation temp. |
| Side-mode Suppression Ratio | Min. 35 dB, Typ. 45 dB | Min. 35 dB, Typ. 45 dB | CW @rated power |

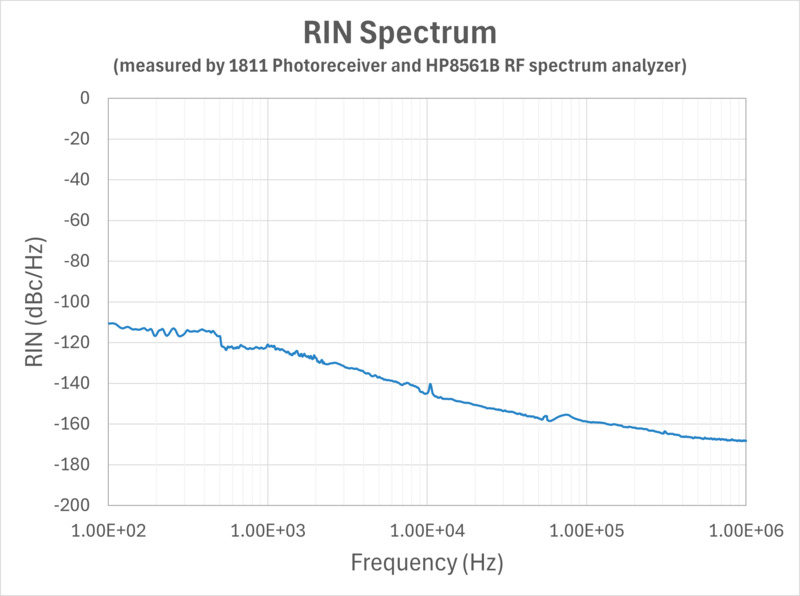

| Relative Intensity Noise | Shot noise limited @ frequency Min. 100 kHz | Shot noise limited @ frequency Min. 100 kHz | |
| Output Power Stability | Max. ±0.2 dB (within 8 hrs), Max. ±0.03 dB (within 10 mins) CW | Max. ±0.2 dB (within 8 hrs), Max. ±0.03 dB (within 10 mins) CW | @ rated power and constant environment temperature |
| Wavelength Stability | Max. ±0.005 nm (within 8 hrs), Max. ±0.001 nm (within 10 mins) CW | Max. ±0.005 nm (within 8 hrs), Max. ±0.001 nm (within 10 mins) CW | @ rated power and constant environment temperature |
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VDC | +12 ± 0.25 |
| Module Dimensions | mm | 200(W) x 140(D) x 50(H)[AULLD Series] or 350(W) x 350(D) x 35(H)[AULLD High Power Series] |
| Optical Power Monitoring | Seed power, Output power | |

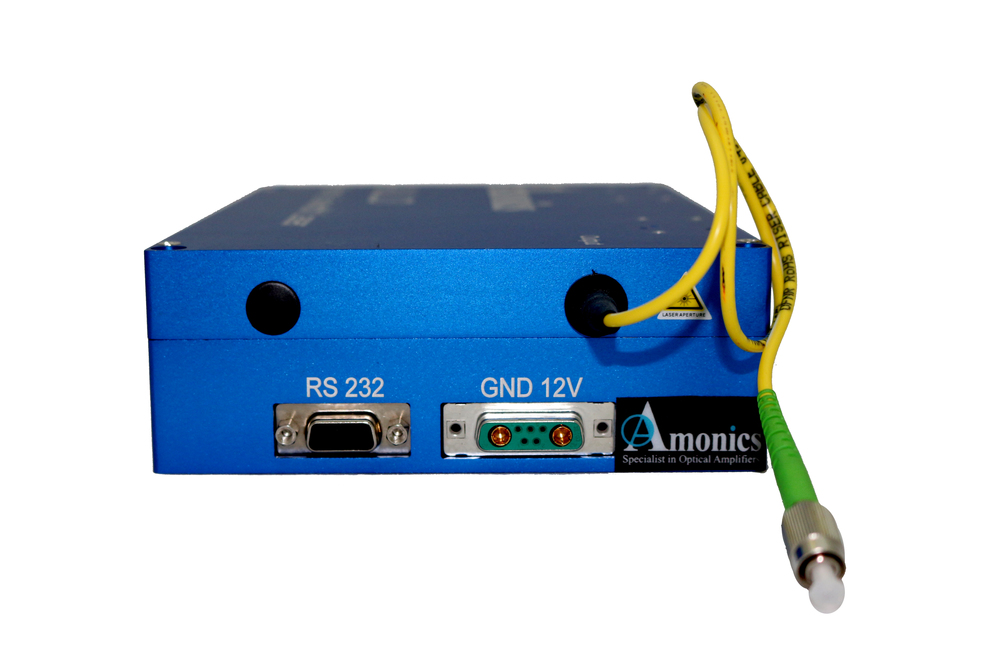

| Remote Control Port | DB-9 female (RS232) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC, bare fiber | |
| Optical Fiber | PM fiber, SMF-28 (optional) |
Ordering Information
| Product Code |
|---|
| AULLD-aa-bbbb-cc-dd-M-ee |
| aa: Default (or unspecified) for single mode, PM for polarization maintaining |
| bbbb: Wavelength in nm |
| cc: Laser linewidth in kHz |
| dd: Output power in dBm |
| ee: FA for FC/APC, FC for FC/UPC, CL for collimator, SA for SC/APC, SC for SC/UPC, NC for bare fiber |
Applications
Key Features
| Narrow linewidth |
| Low phase noise |
| Ultra low RIN |
| High output power, up to 2W |
| Linear polarized output |
| Ultra stable |
| RS232 remote control (Option) |
| Wavelength tunability (Option) |
