C-Band & Extended C-band DWDM EDFA

C-band and Extended C-band DWDM Erbium-doped Fiber Amplifiers (EDFA) are among the Amonics’ specialist products. They are designed with high-power pump laser and high-stability pump combiners, renowned for robustness in high power boosting. The EDFAs feature high output power, high gain with very low noise, and they can be customized to accommodate a wide range of input signal levels. They are thus ideal for various demanding applications.

The turnkey microprocessor-controlled EDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. The EDFAs are available in both benchtop and rackmount casings.


Composite Output Power Min. 22, Typ. 23 dBm Min. 22, Typ. 23 dBm
Composite Input Power -10 to +10 dBm -10 to +10 dBm Depends on the required gain
Optical Input Wavelength 1529 to 1563 nm 1527 to 1567 nm
Gain (dB) 21, 25, 30 21, 25, 30 Input Power (dBm) +1, -3, -8
Noise Figure Typ. 5.5 dB, Max. 6.0 dB Typ. 5.5 dB, Max. 6.0 dB

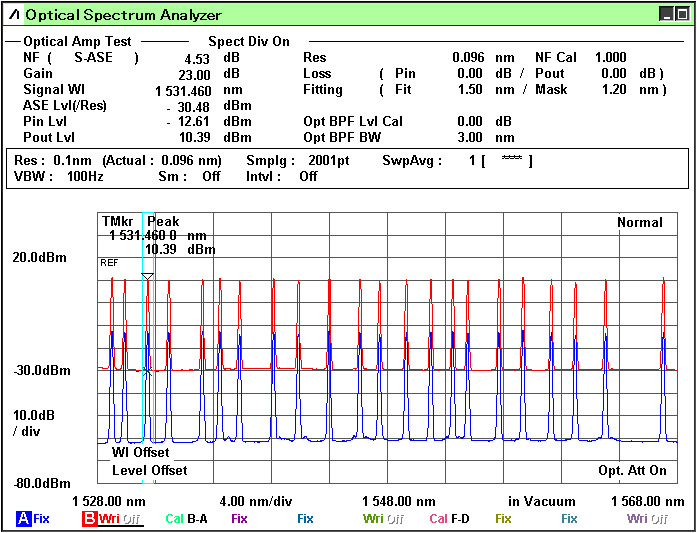

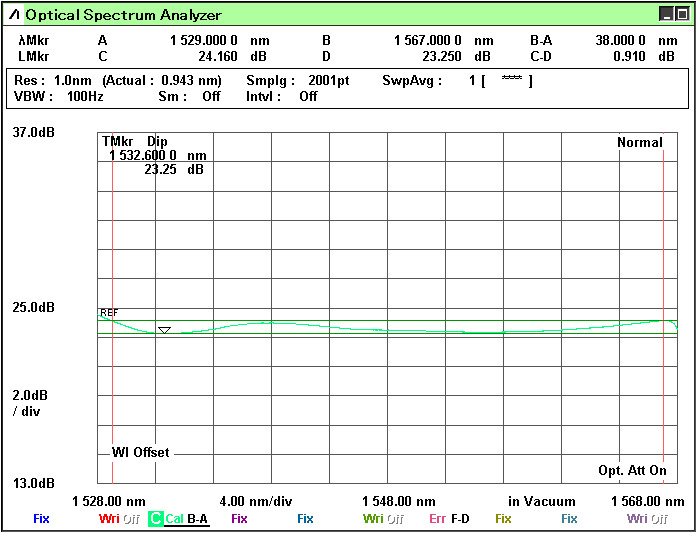

Gain Flatness (peak to peak) Typ. 1.0 dB, Max. 2.0 dB Typ. 1.0 dB, Max. 2.0 dB
Input & Output Isolation Min. 30 dB Min. 30 dB
Polarization Dependent Gain Typ. 0.3dB, Max. 0.5dB Typ. 0.3dB, Max. 0.5dB
Control Mode ACC, APC, AGC(optional) ACC, APC, AGC(optional)
Other output power models are available upon request

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
Rackmount Dimensions mm 485(W) x 360(D) x 90(H)
Control Key-lock switch, optical output power
LCD Display Output power, Input power (optional), Pump laser current
Computer Interface RS232(Control software & connection cable included) / Ethernet(option)
Protection Pump laser overheat warning
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber SMF-28


APC or AGC Control Mode
Benchtop or 19” Rackmount Housing

Ordering Information

Product Code
AEDFA-C-DWDM-aa-b-cc or AEDFA-C-EX-DWDM-aa-b-cc
aa: Saturated output power in dBm
b: B for Benchtop, R for 19 inch Rackmount
cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC

Key Features

Turnkey device
RS232 / Ethernet computer interface
High output power
High gain
Low noise figure
Two year warranty
