CATV Erbium Doped Amplifier (EDFA)
CATV EDFAs inherit the reliable design of Amonics’s optical amplifier technology. They exhibit high output power, high gain with very low noise. They are thus ideal for CATV applications. CATV EDFAs are available in rackmount or module.

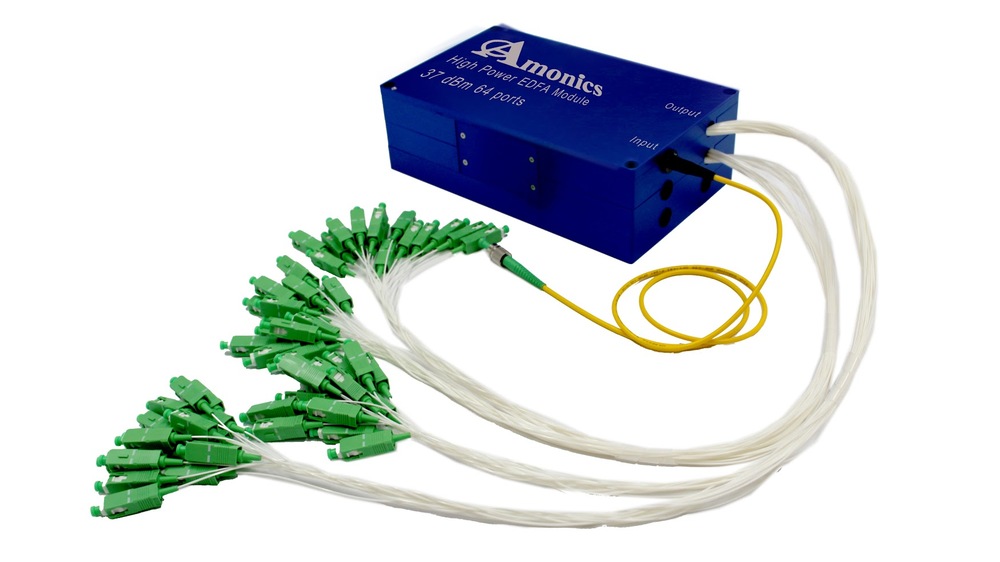

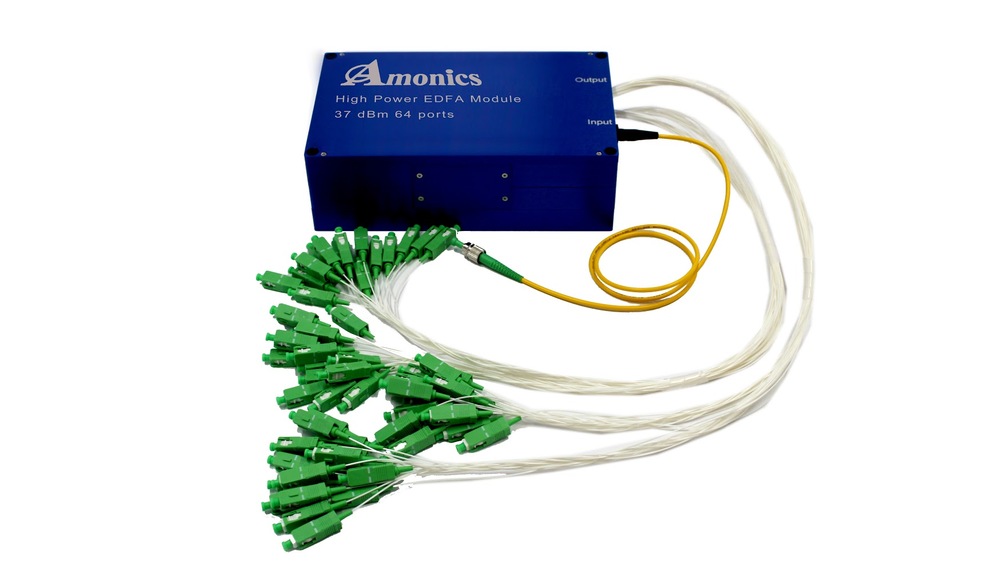

The CATV EDFA modules, operated on a single +5V power supply, are ideal building blocks for OEM systems integration of a wide range of applications as they come with the essential EDFA functions to serve various purposes and the interfaces ready for system integration.
Amonics CATV Rackmount EDFA area made with high power pump laser and stability pump combiners, robust in high power boosting. The result are EDFAs that possess high output power, high gain with very low noise, and are ideal for CATV applications. The turnkey microprocessor controlled rackmount EDFAs manage alarms and status indicators. An integrated RS232 or Ethernet computer interface enables easy control, diagnostic functions and data acquisition.
Specifications

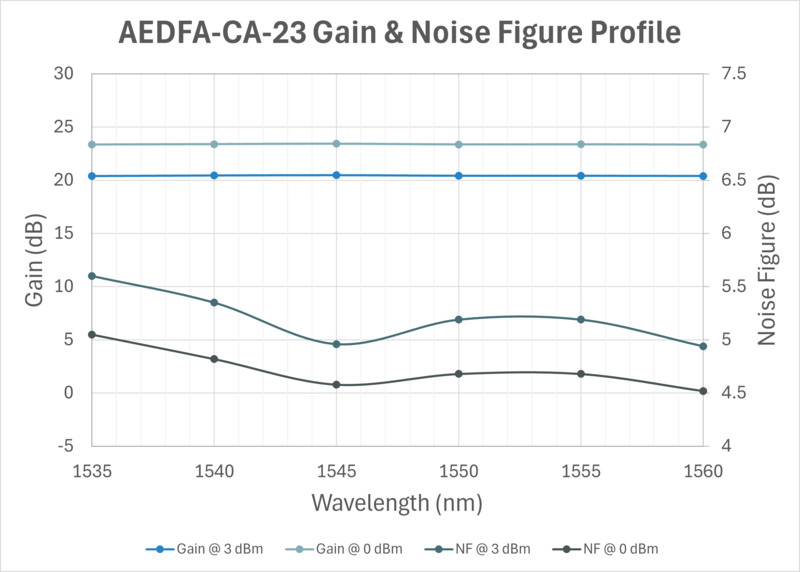

| AEDFA-CA-13 | AEDFA-CA-18 | AEDFA-CA-23 | |
|---|---|---|---|
| Number Of Output Power | 1 | 1, 2 | 1, 2, 4 |
| Input Power | -6 dBm to +6 dBm | -6 dBm to +6 dBm | -6 dBm to +6 dBm |
| Saturated Output Power | Min. +13 dBm | Min. +18 dBm | Min. +23 dBm |
| Noise Figure (at 0dBm input signal) | Typ. 4.5 dB | Typ. 5.0 dB | Typ. 5.5 dB |
| Operating Wavelength | 1535 nm to 1560 nm | 1535 nm to 1560 nm | 1535 nm to 1560 nm |
| Input Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | ACC, APC, AGC (optional) | ACC, APC, AGC (optional) | ACC, APC, AGC (optional) |

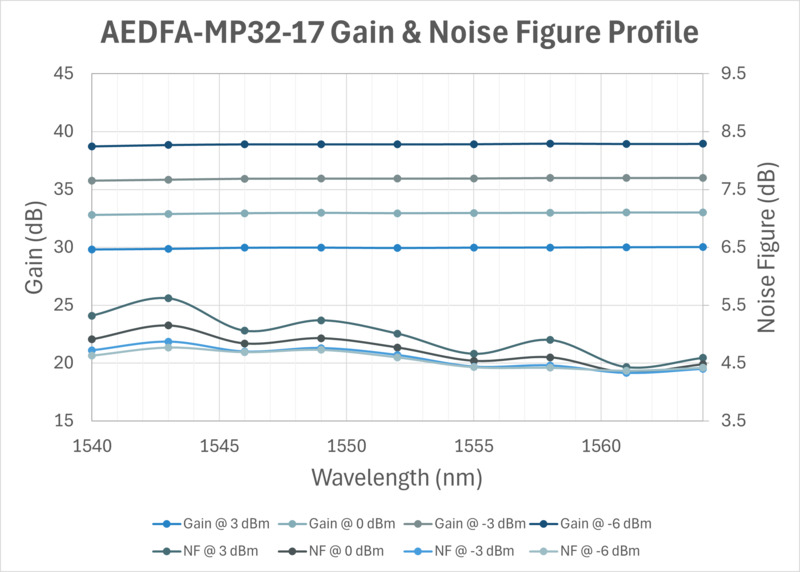

| AEDFA-MP32-17-M | AEDFA-MP64-17-M | |
|---|---|---|
| Number of output ports | 32 ports | 64 ports |
| Each Port Output Power (at -6dBm input signal) | Min. 15 dBm, Typ. 17 dBm | Min. 15 dBm, Typ. 17 dBm |
| Total Output Power (at -6dBm input signal) | Min. 31 dBm, Typ. 33 dBm | Min. 34 dBm, Typ. 36 dBm |
| Input Signal Level | -6 to +10 dBm | -6 to +10 dBm |
| Noise Figure (at 0dBm input signal) | Typ. 5.0 dB, Max. 6.0 dB | Typ. 5.0 dB, Max. 6.0 dB |
| Operating Wavelength | 1545 nm to 1565 nm | 1545 nm to 1565 nm |
| Input / Output Isolation | Min. 30 dB | Min. 30 dB |
| Output Power Stability (over 8 hrs) | ±0.04 dB (Output Power ≥ 14dBm per port) | ±0.04 dB (Output Power ≥ 14dBm per port) |
| Polarization Dependent Loss | Max. 0.3 dB | Max. 0.3 dB |
| Polarization Mode Dispersion | Max. 0.3 ps | Max. 0.3 ps |
General Parameters
| unit | value | remarks | |
|---|---|---|---|
| Operation Temperature | °C | 0 to +40 | |
| Storage Temperature | °C | -10 to +70 | |
| Rackmount Power Supply | VAC | 90 - 240, 47 - 63Hz | |
| Module Power Supply | VDC | 5 ± 0.1 or 12.0 ± 0.25 | |
| Rackmount Dimensions | mm | 485(W) x 360(D) x 45(H) | |
| Module Dimensions | mm | 100(W) x 120(D) x 18(H) | for AEDFA-CA-13 |
| Module Dimensions | mm | 120(W) x 200(D) x 25(H) | for AEDFA-CA-18 / AEDFA-CA-23 |
| Module Dimensions | mm | 120(W) x 200(D) x 44(H) | for AEDFA-MP32-17-M |
| Module Dimensions | mm | 120(W) x 200(D) x 63(H) | for AEDFA-MP64-17-M |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | Rackmount only | |
| Optical Power Monitoring | Output power, Input power (optional) | ||
| Remote Control Port | DB-9 female (RS232), Control software included, RJ-45 (TCP/IP Ethernet) (optional) | Rackmount only | |
| Electrical Connector Interface | 14-pin IDC socket | for AEDFA-CA-13 | |
| Electrical Connector Interface | 16-pin IDC socket | for AEDFA-CA-18 / AEDFA-CA-23 | |
| Electrical Connector Interface | DB-25 (Male) | for AEDFA-MP32-17-M or AEDFA-MP64-17-M | |
| Protection | Pump laser (TEC) overheat | ||
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | ||
| Optical Fiber | SMF-28 (min. 0.5m for Module) |
Options
| Gain Flattening Filtering |
| APC or AGC Control Mode |
| Output Power Monitoring |
Ordering Information
| Product Code |
|---|
| AEDFA-CA-aa-b-cc or AEDFA-MPdd-ee-M-cc |
| aa: Saturation output power in dBm |
| b: M for Module, R for Rackmount |
| dd: Number of port |
| ee: Power on each port |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| CATV-field-proven low noise figure |
| Small foot print |
| High output power |
| High gain |
| Wide operation range |
| Highly reliable and durable |
