C+L Band Raman Amplifier
Amonics Raman Amplifier is a high power pump laser source for distributed optical amplification of optical signals in the C or C+L band.
The Raman Amplifier features 2 or 4 pumping wavelengths for gain flattened amplification. It is a ready-to-use optical amplifier equipped with a broadband pump & signal combiner and individual power monitoring for each channel. The Raman Amplifier is available in both benchtop and rackmount casings, as well as customized modules.
Specifications
| ARA-CL-800 | ARA-CL-1200 | |
|---|---|---|
| Operating Wavelength | 1528 nm to 1605 nm | 1526 nm to 1610 nm |

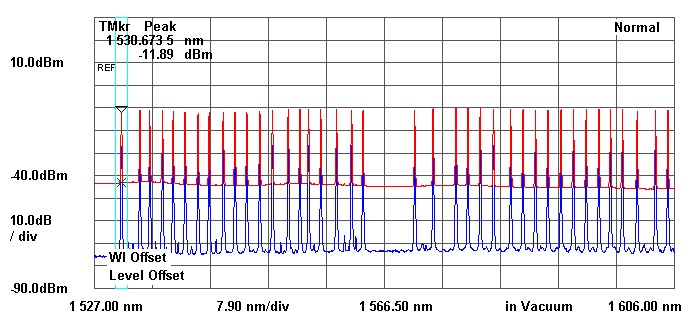

| Optical Gain | Min. 10 dB | Min. 15 dB, Typ. 16 dB |

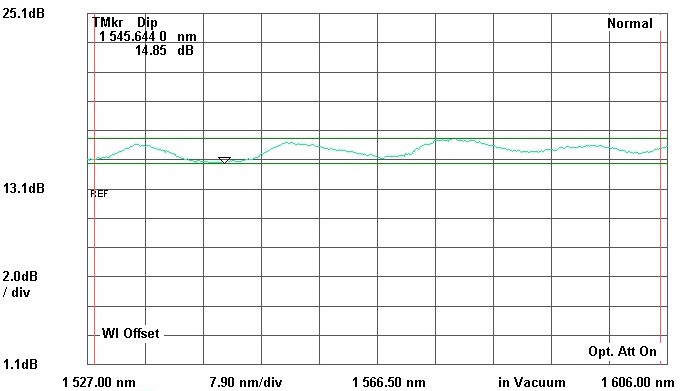

| Gain Flatness | Max. 2 dB | Max. 2.5 dB |
| Total Pump Power | Min. 700 mW, Typ. 800 mW | Min. 1000 mW, Typ. 1200 mW |
| Effective Noise Figure | Typ. -1.0 dB, Max. -0.5 dB | Typ. -1.0 dB, Max. -0.5 dB |
| Signal Insertion Loss | Typ. 0.7 dB, Max. 1.5 dB | Typ. 0.7 dB, Max. 1.5 dB |
| Degree of Polarization | Typ. 5 %, Max. 10 % | Typ. 5 %, Max. 10 % |
| Control Mode | ACC | ACC |
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VAC | 90 – 240VAC, 47 – 63Hz |
| 2U Rackmount Dimensions | mm | 485(W) x 515(D) x 90(H) (Standard) |
| 2U Rackmount Dimensions | mm | 485(W) x 360(D) x 90(H) (High Gain Wide Band) |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Total pump power | |
| Remote Control Port | DB-9 female (RS232), Control software included, RJ-45 (TCP/IP Ethernet) (optional) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 |
Ordering Information
| Product Code |
|---|
| ARA-CL-aaa-R-bb |
| aaa: Pump power, 500 for 500mW, 800 for 800mW |
| bb: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| High output power |
| High gain |
| Low noise figure |
| RS232 computer interface |
| Highly reliable and durable |
