MSA C-band DWDM EDFA Module
Amonics now packages one of its most popular product lines, C-band DWDM Erbium-doped Fiber Amplifiers (EDFAs), into standard MSA size. The same reliable, stable and durable EDFAs are thus readily available for system integration of a wider range of applications.
The devices provides the usual alarms and status indicators, with an integrated RS232 computer interface for easy control, diagnostic functions and data acquisition. This MSA series will be expanded to cover EDFAs of different specifications in our product range in order to meet the growing demands.

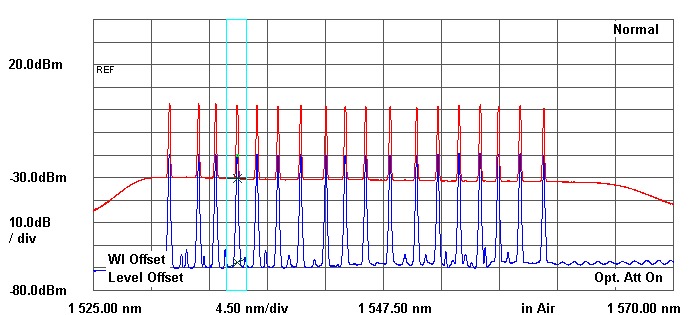

Specifications
| AEDFA-C-DWDM-M | |||
|---|---|---|---|
| Saturation Output Power | +10 dBm | +14 dBm | +16 dBm |
| Wavelength Range | 1529 nm to 1563 nm | 1529 nm to 1563 nm | 1529 nm to 1563 nm |
| Gain | 18 dB, 13 dB, 9 dB | 22 dB, 17 dB, 13 dB | 24 dB, 19 dB, 15 dB |
| Input Power | -8 dBm, -3 dBm, +1 dBm | -8 dBm, -3 dBm, +1 dBm | -8 dBm, -3 dBm, +1 dBm |
| Noise Figure | Typ. 5.0 dB | Typ. 5.3 dB | Typ. 5.5 dB |
| Gain flatness (peak to peak) | Typ. 1.0 dB, Max. 2.0 dB | Typ. 1.0 dB, Max. 2.0 dB | Typ. 1.0 dB, Max. 2.0 dB |
| Input Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Output Isolation | Min. 30 dB | Min. 30 dB | Min. 30 dB |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB |
| Control Mode | ACC, APC, AGC | ACC, APC, AGC | ACC, APC, AGC |
Other output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to 40 |
| Storage Temperature | °C | -10 to 70 |
| Power Supply | VDC | 5.0 ± 0.1 |
| Dimensions | mm | 70(W) x 90(D) x 15(H) |
| Optical Power Monitoring | Input and output power | |
| Electrical Connection | 2.00mm (2x15) 30 pin IDC connector | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | Min. 0.5m long SMF-28 |
Options
| Gain Flattening Filtering |
| APC or AGC Control Model |
| Output Power Monitoring |
Ordering Information
| Product Code |
|---|
| AEDFA-C-DWDM-aa-M-bb |
| aa : Saturated output power in dBm |
| M : M for MSA module case |
| bb : FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| Standard MSA size |
| High stability |
| High gain |
| Low noise figure |
