EDFA Education Kit
Amonics’ EDFA Education Kit is designed to attain the learning outcomes of acquiring simple theoretical understanding and hand-on experience in building erbium-doped fiber amplifier, as well as measuring optical gain, noise figure and optimizing Erbium-doped fiber length, with minimum fuss.
Experiment procedures and manuals can be easily adopted in relevant course materials at tertiary level. Full set of accessories comes with the educational kit for all testing and measurement purposes. All fiber connections are made effortlessly through the given connectors and no fusion splicing is required.

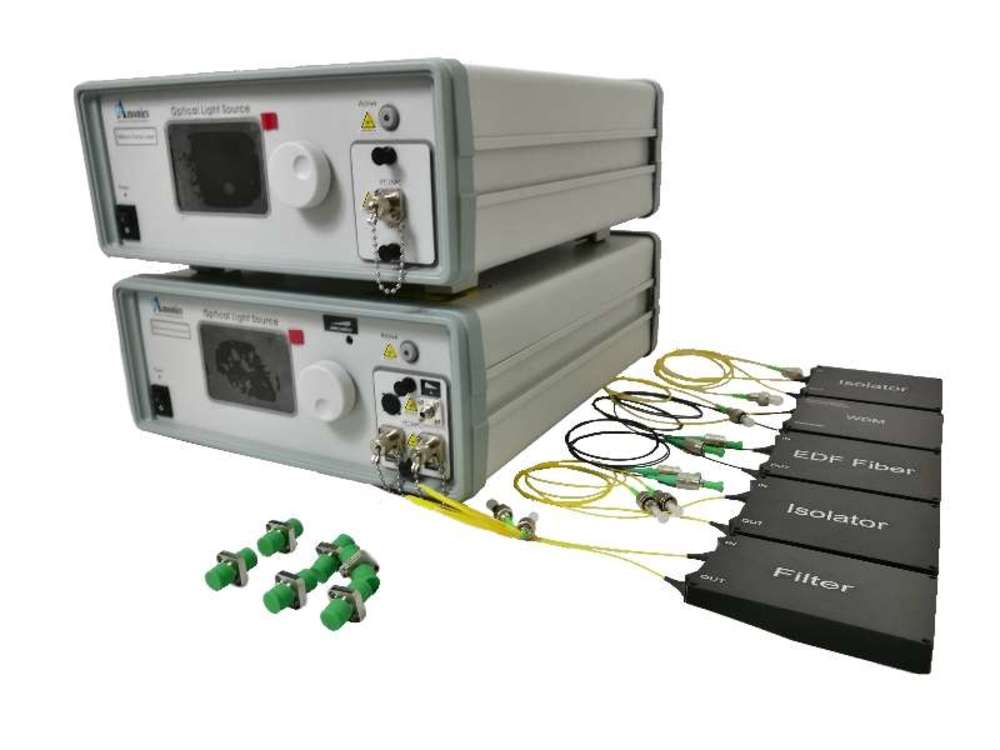

All necessary components for building your own EDFA, including:
| Ed Kit 100 | |
|---|---|
| Benchtop I | 980 nm pump laser |
| Benchtop II | C-band DFB laser (with integrated attenuator and wavelength turning), and integrated taper photodetector |
| Module I | High efficiency erbium-doped fiber module |
| Module II | inline polarization independent optical isolators x 2 pcs |
| Module III | 980/1550 nm wavelength division multiplexer |
| Module IV | Optical filter |
| Patchcord | Single mode fiber jumper with FC connector |
| Adaptors | FC type alignment sleeves x6pcs |
| Manual | User manual with educational material and experiment setups |
DFB wavelength and connector type are selectable.
Benchtop Parameters:
| Benchtop | |
|---|---|
| Operation Temperature | 0 to +40 °C |
| Storage Temperature | -10 to +70°C |
| Power Supply | 90 – 240, 47 – 63Hz VAC |
| Dimensions | 260(W) x 330(D) x 120(H) mm |
| Mechanical Safety Control | Key-lock switch, BNC interlock key |
| Protection | Pump laser or DFB (TEC) overheat |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC |
| Optical Fiber | Single Mode Fiber |
Ordering Information
| Product Code |
|---|
| EDFA Education Kit |
Applications
Key Features
| No fusion splicer is required |
| No other measurement equipment is necessary |
