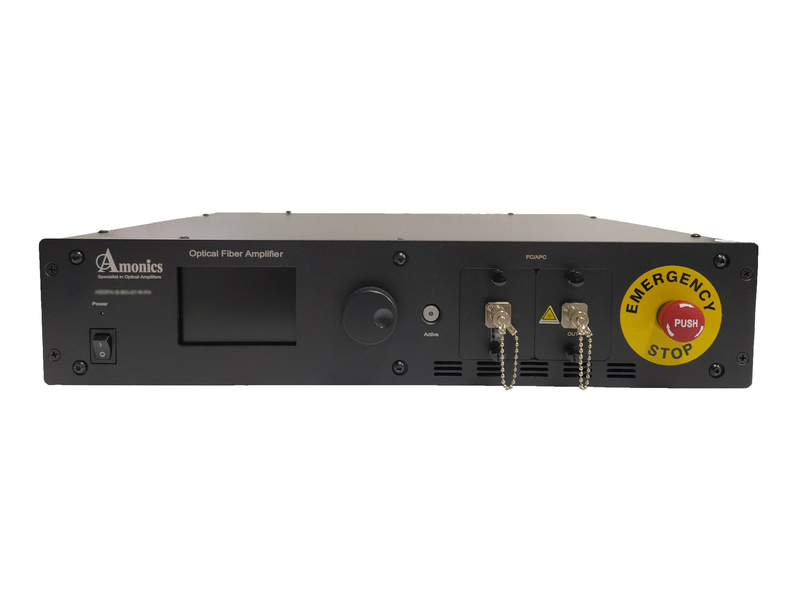

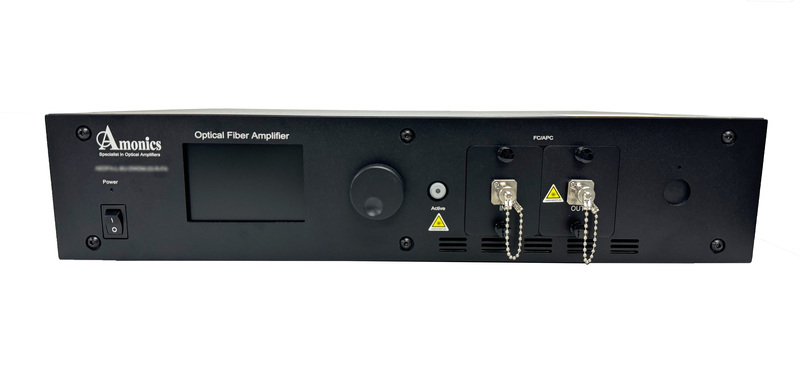

As the growing demand of data transmission capacity, Amonics’ Super L-band (L++ band) DWDM Erbium-doped Fiber Amplifier (EDFA) is the ideal solution that features Super L-band operating range up to 1626.2nm. The EDFA adopts the design of high-power pump laser and high-stability pump combiners, renowned for robustness in high power boosting. It provides flattened gain across the operating wavelength range and very low noise figure.
The turnkey microprocessor-controlled EDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition.
AEDFA-L-SU-DWDM-21 | AEDFA-L-SU1-DWDM-20 | |
---|---|---|
Composite Output Power | Min. 21 dBm, Typ. 22 dBm @ input power 0 dBm | Typ. 20 dBm @ input power 0 dBm |
Composite Input Power | -6 to +3 dBm | -6 to +3 dBm |
Optical Input Wavelength | 1570 nm to 1625 nm | 1574.3 nm to 1626.2 nm |
Optimal Optical Gain | Min. 21 dB, Typ. 22 dB @ input power 0 dBm | Typ. 20 dB @ input power 0 dBm |
Noise Figure | Max. 7.5 dB @ wavelength range 1570-1620nm | Typ. 7.5 dB |
Gain Flatness (peak to peak) | Max. 2.0 dB | Max. 2.0 dB |
Input / Output Isolation | Min. 30 dB | Min. 30 dB |
Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | Typ. 0.3 dB, Max. 0.5 dB |
Control Mode | ACC | ACC |
unit | value | |
---|---|---|
Operation Temperature | °C | 0 to +40 |
Storage Temperature | °C | -10 to +70 |
Power Supply | VAC | 90 – 240, 47 – 63Hz |
Dimensions | mm | 485(W) x 360(D) x 90(H) |
Mechanical Safety Control | Key-lock switch, BNC interlock key | |
LCD Display | Output power, Input power (optional), Pump laser current | |
Computer Interface | RS232(Control software & connection cable included) / Ethernet(option) | |
Protection | Pump laser overheat warning | |
Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
Optical Fiber | SMF-28 |
Product Code |
---|
AEDFA-L-SU-DWDM-aa-b-cc or AEDFA-L-SU1-DWDM-aa-b-cc |
aa : Saturation output power in dBm |
b: R for 19” Rackmount |
cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Super L-band operating wavelength |
Flattened gain |
Low noise figure |
Turnkey device |
RS232/Ethernet interface |
