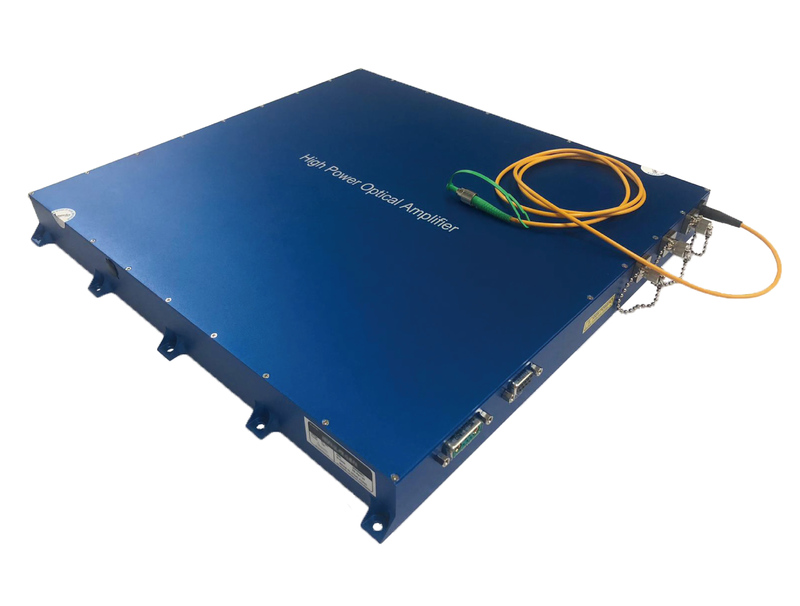

HP EDFA Module for Free Space Communication Application
Amonics' HP (high power) EDFA module series offers eye-safe, single mode, single mode (linear polarized) fiber amplifier. The module can be applied to laser link among satellites in low-Earth orbit. It offers advantages over radio frequencies for ground station-to-satellite and inter-satellite links above the atmosphere: higher transmission bandwidth, smaller receivers, and tighter beams to enhance security. The HP EDFA module series is maintenance free with no post-installation service required. It is a versatile, ready-to-use and durable laser source for various free space communication applications as well as integration to OEM system.
Specifications
| AEDFA-42-M-NC | Remark | |
|---|---|---|
| Mode of Operation | CW Mode | |
| Saturated Output Power | Min. +15 W | Input Power = -10 to 0 dBm |
| Input Wavelength | 1550.12 ± 0.4 mm | ITU Ch34, Other channels are available |
| Input Signal Level | -20 to 0 dBm | |
| Noise Figure | Typ. 5.0 , Max 5.5 dB | Input Power = 0 dBm |
| Input & Output Isolation | Min. 30 dB | |
| Return Loss | Min. 45 dB | |
| Polarization Dependent Gain | Typ. 0.3 dB, Max. 0.5 dB | SM Version |
| Polarization Mode Dispersion | Typ. 0.3 ps, Max. 0.5 ps | SM Version |
| Polarization Extinction Ratio | Typ. 23 dB, Min. 20 dB | PM Version |
| Control Mode | ACC, APC (10-100%) |
General Parameters
| Value | remark | ||
|---|---|---|---|
| Operation Temperature | °C | -5 to +65 | Case Temperature |
| Storage Temperature | °C | -10 to +70 | |
| Power Supply | VDC | 24 ± 0.5 | |
| Dimensions | mm | 350(W) x 350(D) x 35(H) | |
| Protection | Pump Laser (TEC) Overheat, Loss of Input Signal,Output Power Protection, Mid-Stage Protection | ||
| Optical Terminal | Min. 2.0m 3mm PVC cable | Input: FC/APC pigtail Output: Bare fiber Output Tap Port: FC/APC Receptacle | |
| Optical Fiber | SMF-28 or PM 1550 Panda | Input: FC/APC pigtail Output: Bare fiber Output Tap Port: FC/APC Receptacle | |
| Remote Control Port | RS232 | ||
| Electrical Connector | 7W2C header |
Options
| Other voltage supply |
| Linear polarization emission |
| Mid-stage bandpass filter for different wavelength and low input power |
Ordering Information
| Product Code |
|---|
| SM version:AEDFA-aa-M-bb or PM Version:AEDFA-PM-aa-M-bb |
| aa: Saturated output power in dBm |
| b: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, NC for bare fiber, CL for collimator *Output connector can be added for low power testing only(<5W) |
Applications
Key Features
| Fiber coupled output up to 15W |
| Eye-safe wavelength in 1550nm range |
| Narrow linewidth operation |
| Low RIN & low phase noise |
| Wide operating temperature, from -20 to +65°C |
| Robust and reliable, compact design |
| 24 VDC power supply with lowest consumption |
| High reliability & Maintenance free |
